Key features
Integrated, easily accessible spice rack; clears work space on the countertop.
5-year limited warranty. Read about the terms in the limited warranty brochure.
The included LED strip effectively illuminates the cooking surface and provides energy saving.
Control panel placed at front for easy access and use.

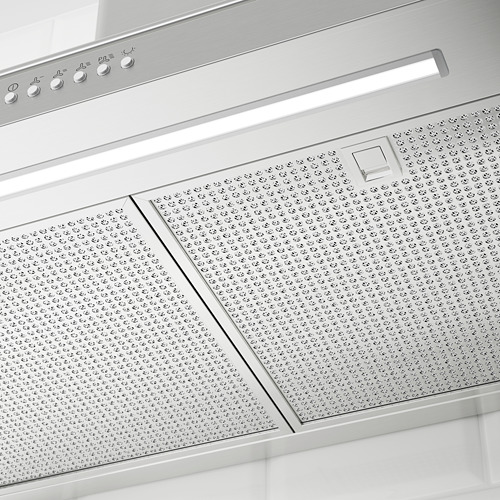

You can easily remove and clean the grease filter. 2 grease filters included.
Can be installed in two ways: ducted to the outside or in recirculation mode fitted with charcoal filter.
Designer
Good to know
4.6 sones.
270 CFM.
Motor power: 240W.
Voltage: 120V.
HVI-certified.

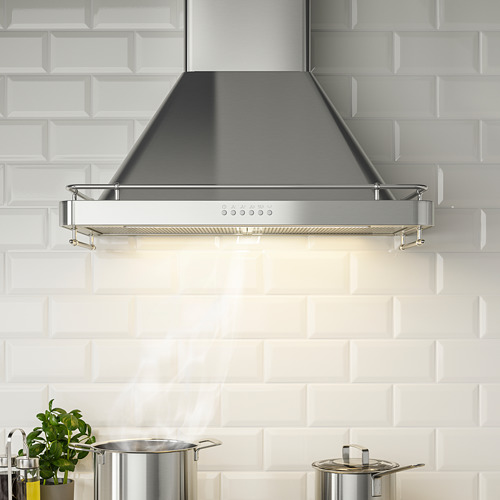

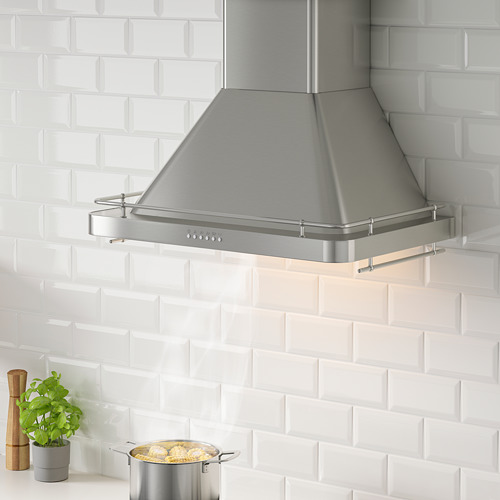

Wall-mounted extractor hood with 4 speeds.
For optimal performance when using your extractor hood on a daily basis, it is recommended that you replace your filter every 6 months.
For recirculation installation: to be completed with NYTTIG FIL 01 and NYTTIG FIL 20 charcoal filter with conversion kit.
You will find complete information about the installation and use of this product under the tab Assembly instructions & documents.
Measurements
Assembled size
| Max. height extraction: | 41 1/8 " |
| Min. height extraction: | 31 3/8 " |
| Max. height recirculation: | 45 1/8 " |
| Min. height recirculation: | 32 1/8 " |
| Width: | 29 7/8 " |
| Depth: | 18 7/8 " |
| Weight: | 38.80 lb |
| Width of chimney: | 10 3/4 " |
| Depth of chimney: | 9 3/8 " |
Package size & weight
Do you take it home? Make sure it fits in your vehicle.
| Length: | 33 ¾ " |
| Width: | 25 ¼ " |
| Height: | 23 " |
| Weight Gross: | 56 lb 0 oz |
| Weight Net: | 43 lb 13 oz |
| Volume per package: | 11.39 cu.ft |
Technical information
| Brand name |
Assembly instructions
Advice instructions
Only the latest versions of these documents are available for download. This means that there may sometimes be differences between the documents you download and the versions that come with the product.
