UNGDOMLIG
Regular price $1,495
Article number XPML 504.621.40
Article number XPML 504.621.40
Features
Key features
Can be installed in two ways: ducted to the outside or in recirculation mode fitted with charcoal filter.
5-year limited warranty. Read about the terms in the limited warranty brochure.
The included LED strip effectively illuminates the cooking surface and provides energy saving.
Eliminates cooking fumes and odors quickly and effectively thanks to the large extraction area.
You can easily remove and clean the grease filter. 2 grease filters included.
Designer
Good to know
Motor power: 240W.
Voltage: 120V.
7.6 sones.
376 CFM.
HVI-certified.
Wall-mounted range hood with 3 speeds.
For optimal performance when using your range hood on a daily basis, it is recommended that you replace your filter every 6 months.
You will find complete information about the installation and use of this product under the tab Assembly instructions & documents.
For recirculation installation: to be completed with NYTTIG FIL 01 and NYTTIG FIL 20 charcoal filter with conversion kit.
Two grease filters included.

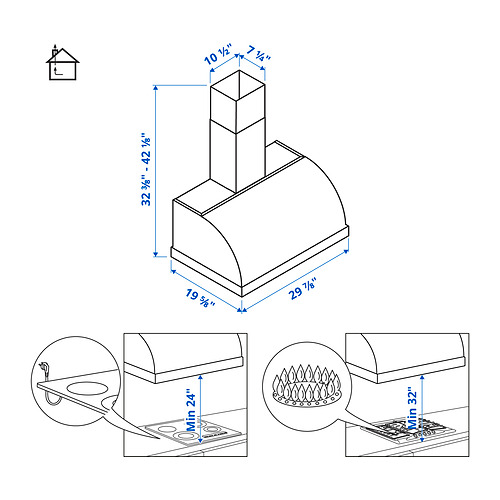

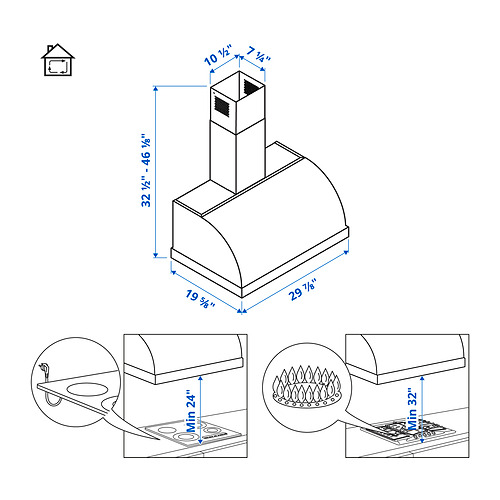

Measurements
Assembled size
| Max. height extraction: | 42 1/8 " |
| Min. height extraction: | 32 3/8 " |
| Max. height recirculation: | 46 1/8 " |
| Min. height recirculation: | 32 1/2 " |
| Width: | 29 7/8 " |
| Depth: | 19 5/8 " |
| Height: | 18 5/8 " |
| Width of chimney: | 8 1/8 " |
| Depth of chimney: | 7 1/8 " |
Package size & weight
Do you take it home? Make sure it fits in your vehicle.
| Length: | 35 " |
| Width: | 30 ¼ " |
| Height: | 19 " |
| Weight Gross: | 56 lb 9 oz |
| Weight Net: | 48 lb 6 oz |
| Volume per package: | 11.58 cu.ft |
Assembly instructions
Advice instructions
Only the latest versions of these documents are available for download. This means that there may sometimes be differences between the documents you download and the versions that come with the product.
